Stainless Steel Fittings

• Application
• other, Pipe Connections, Fluid Transfer, Gas & Liquid Lines

• Bend Radius
• As per fitting geometry

• Coating Type
• No Coating/Passivated Surface

• Color
• Silver/Metallic

• Connection
• Other, Threaded/Welded

• Connection Type
• Threaded/Socket Weld/Butt Weld

• Diameter
• 1/8 to 8 (Varies by type)

• Flexibility
• Rigid

• Length
• Customizable; varies by fitting

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L, SS304L

• Outer Diameter
• 8 mm to 200 mm (Varies by fitting)

• Product Type
• Other, Stainless Steel Fittings

• Rated Pressure
• Up to 6000 PSI (Varies by type)

• Sealing Type
• Metal-to-metal or Threaded

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupler, Nipple, Reducer, Plug (Varies)

• Standard
• Other, ASTM A182, ASTM A403, ASME B16.11, DIN, ISO

• Surface Treatment
• Other, Polished/Passivated

• Temperature Range
• -50C to 400C

• Tensile Strength
• 515 MPa (min) for SS304

• Thickness
• Customizable; typically 2-10 mm

• Thread Type
• BSP, NPT, BSPT, Metric

• Tolerance
• 0.1 mm

• Usage
• Industrial, Plumbing, Chemical, Oil & Gas

• Yield Strength
• 205 MPa (min) for SS304

• Application
• other, Oil & Gas, Chemical, Petrochemical, Water Treatment

• Coating Type
• Uncoated / Mill Finish

• Color
• Metallic Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 15 mm to 1200 mm

• Flexibility
• Rigid

• Length
• As per standard or customization

• Material
• Stainless Steel

• Material Grade
• 304, 304L, 316, 316L, 321, 347

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type
• Other, End Cap

• Rated Pressure
• Class 150/300/600/900 (Sch 10/20/40/80 etc.)

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Circular

• Shape
• Other, Round / Dome-shaped

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Pickled, Passivated

• Temperature Range
• -196C to 600C

• Tensile Strength
• 515 MPa

• Thickness
• 3 mm - 12 mm (customizable)

• Tolerance
• 0.2 mm

• Usage
• Pipeline End Sealing

• Yield Strength
• 205 MPa

• Application
• other, Hydraulic systems, Process piping, Instrumentation

• Coating Type
• None (Passivated only)

• Color
• Silver/Grey (Natural Stainless Steel)

• Connection
• Other, Threaded

• Connection Type
• Male/Female Threaded

• Diameter
• As specified (customizable)

• Flexibility
• Rigid

• Length
• 15 mm to 50 mm (as per size)

• Material
• Stainless Steel

• Material Grade
• SS304, SS316/316L

• Outer Diameter
• Available 10 mm to 60 mm

• Product Type

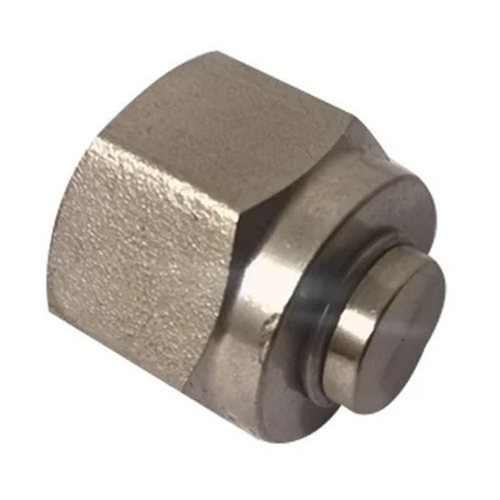

• Other, Tube Plug

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-Metal (can include PTFE for extra seal)

• Section Shape
• Other, Circular (plug portion)

• Shape
• Other, Hexagonal with circular plug

• Standard
• Other, ASTM A182, ASME B16.11

• Surface Treatment
• Other, Polished, Passivated

• Temperature Range
• -50C to +400C

• Tensile Strength
• 515 MPa (min for SS304)

• Thickness
• Varies with size; typically 2-8 mm

• Thread Type
• NPT/BSP/UNF

• Tolerance
• 0.05 mm

• Usage
• Sealing tube ends, pressure vessel uses

• Yield Strength
• 205 MPa (min for SS304)

• Application
• other, Water, Oil & Gas, Chemicals, Steam

• Coating Type
• None (Optional PTFE)

• Color
• Silver

• Connection
• Other, Male Threaded

• Connection Type
• Threaded

• Diameter
• Nominal Pipe Size (NPS)

• Flexibility
• Rigid

• Length
• 2 inch to 24 inch (customizable)

• Material
• Stainless Steel

• Material Grade
• SS 304 / 316 / 316L / 321

• Outer Diameter
• 1/8 inch to 6 inch

• Product Type
• Other, Pipe Nipple

• Rated Pressure
• Up to 150 psi

• Sealing Type
• Threaded Seal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A312 / A403 / ASME B16.11

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 515 MPa (min, grade dependent)

• Thickness
• 1.5 mm - 8 mm (customizable)

• Thread Type
• NPT / BSPT / BSP

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Construction, Industrial Piping

• Yield Strength
• 205 MPa (min, grade dependent)

• Application
• other, Plumbing, Industrial Piping, Water Supply, Oil & Gas

• Bend Radius
• Standard 90 degree

• Coating Type
• None (Stainless Steel)

• Color
• Silver

• Connection
• Other, Male Threaded

• Connection Type
• Threaded

• Diameter
• As per nominal bore size

• Flexibility
• Rigid

• Length
• Varies by size (typically 30 mm - 120 mm)

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 1/2 inch to 4 inch (size dependent)

• Product Type
• Other, SS Male Elbow

• Rated Pressure
• Up to 150 PSI (depends on size/material)

• Sealing Type
• Thread Seal (with tape or compound)

• Section Shape
• Round

• Shape
• Other, Elbow (90 Degree)

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 300C

• Tensile Strength
• 515 MPa (SS304)

• Thickness
• 3 mm (typical, can vary)

• Thread Type
• BSPT / NPT

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting / Fluid Handling

• Yield Strength
• 205 MPa (SS304)

• Application
• other, Pipeline Joints, Bends for Flow Direction Control

• Bend Radius
• 1D, 1.5D, 2D, or Custom

• Coating Type
• None / Self-finished

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld, Socket Weld

• Diameter
• 12 mm to 900 mm

• Flexibility
• Rigid (Fixed shape)

• Length
• Customized/Standard

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L / 321 / 202

• Outer Diameter
• 1/2 inch to 36 inch

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Up to 40 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (curved)

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 480 MPa (typical for SS304)

• Thickness
• 1 mm to 10 mm (as per requirement)

• Thread Type
• None / Unthreaded (standard elbows are welded type)

• Tolerance
• 0.5 mm

• Usage
• Industrial, Plumbing, Chemical, Oil & Gas

• Yield Strength
• 205 MPa (typical for SS304)

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water Pipeline

• Bend Radius
• Standard as per size

• Coating Type
• Uncoated / Polished Surface

• Color
• Silver/Grey

• Connection
• Other, Butt Weld / Socket Weld / Threaded

• Connection Type
• Welded / Threaded / Socket

• Diameter
• Custom as per requirement

• Flexibility
• Rigid

• Length
• Standard Fitting Lengths or Customized

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L / 321 / 347 / 310S

• Outer Diameter
• 1/2 inch to 24 inch (15 mm to 600 mm)

• Product Type
• Other, SS Pipe Tee

• Rated Pressure
• 150# to 2500#

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Tee (T-Shape)

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -20C to 600C

• Tensile Strength
• 515 MPa - 620 MPa

• Thickness
• 2 mm - 10 mm

• Thread Type
• BSP / NPT (if threaded)

• Tolerance
• 0.5 mm

• Usage
• Pipe Connection/Plumbing/Industrial Piping

• Yield Strength
• 205 MPa (min)

• Application
• other, Industrial, Commercial, Hydraulic, Pneumatic Applications

• Bend Radius
• N/A (rigid fitting)

• Coating Type
• Self Color, Electroplated (optional)

• Color
• Silver / Metallic

• Connection
• Other, Threaded / Compression

• Connection Type
• Male / Female Threaded or Compression Fitting

• Diameter
• 1/8 inch to 2 inch

• Flexibility
• Rigid

• Length
• Custom as per requirement

• Material
• Other , Stainless Steel (SS)

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/8 to 2 (custom sizes available)

• Product Type
• Other, Union Cross Tee

• Rated Pressure
• Up to 6000 psi (varies by size and grade)

• Sealing Type
• Metal to Metal / PTFE Sealed

• Section Shape
• Round

• Shape
• Other, Cross / Tee

• Standard
• Other, ASTM / DIN / ISO

• Surface Treatment
• Other, Polished / Chrome Plated

• Temperature Range
• -20C to 450C

• Tensile Strength
• Up to 520 MPa

• Thickness
• Customizable (typically 2-4 mm)

• Thread Type
• BSP / NPT / Metric

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Chemical, Oil & Gas, Water Supply Systems

• Yield Strength
• Up to 210 MPa

• Application
• other, Plumbing, Industrial, Chemical, Water Supply

• Coating Type
• Uncoated (Polished Finish)

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Female Threaded

• Diameter
• 12 mm to 100 mm

• Flexibility
• Rigid

• Length
• 25 mm to 300 mm (customisable)

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 12 mm to 100 mm (customisable)

• Product Type

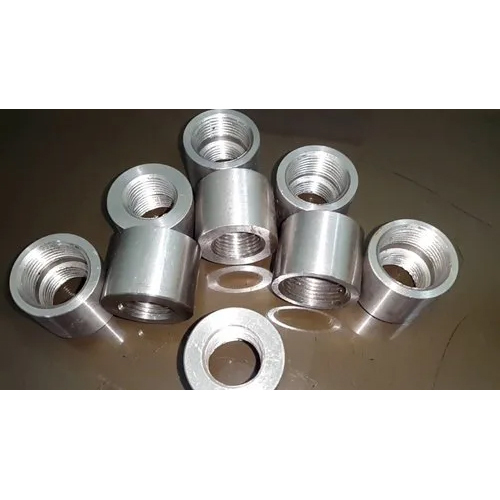

• Other, SS Coupling

• Rated Pressure
• Up to 300 bar

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A182 / A403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 520 MPa (min)

• Thickness
• As per requirement (typically 2-10 mm)

• Thread Type
• BSP / NPT

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting, Industrial Connections

• Yield Strength
• 210 MPa (min)

• Application
• other, Industrial, Construction, Water Pipeline, HVAC

• Bend Radius
• Standard 1.5D, 3D (for elbows)

• Coating Type
• No additional coating (standard stainless steel finish)

• Color
• Silver / Metallic

• Connection
• Other, Threaded / Welded

• Connection Type
• Female Thread, Male Thread, Socket Weld, Butt Weld

• Diameter
• Varied sizes

• Flexibility
• Rigid

• Length
• Custom as per requirement / Standard

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L, SS321, SS347

• Outer Diameter
• 1/8 inch to 24 inch

• Product Type

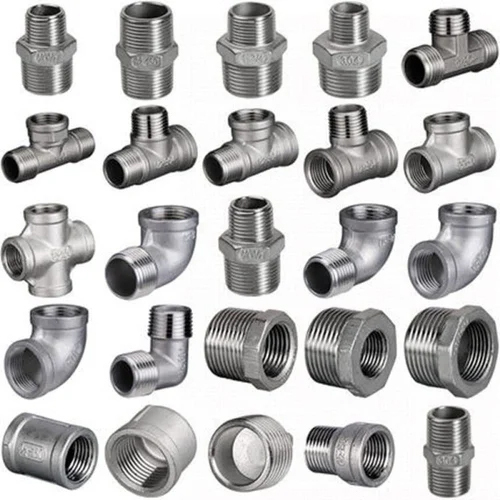

• Other, Pipe Fittings

• Rated Pressure
• Up to 6000 PSI (varies by fitting)

• Sealing Type
• Metal to Metal / Threaded

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Reducer, Nipple, Cap, Socket, Plug, Cross, Union, Adapter, Bushing

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished / Pickled / Mirror / Satin Finish

• Temperature Range
• -196C to 600C

• Tensile Strength
• 520 MPa Min (SS304)

• Thickness
• 1 mm to 10 mm (varies by fitting and size)

• Thread Type
• BSP, NPT, BSPT, Metric

• Tolerance
• 0.05 mm

• Usage
• Plumbing, Chemical, Oil & Gas, Water Supply

• Yield Strength
• 205 MPa Min (SS304)

• Application
• other, Oil & Gas, Chemical, Power, Food, Pharma and Water Industries

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Butt Weld, Lap Joint

• Diameter
• 15mm to 600mm

• Flexibility
• Rigid

• Length
• As per standard or custom requirement

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L, SS321, etc.

• Outer Diameter
• 1/2 to 24 (custom sizes available)

• Product Type
• Other, Pipe Stub Ends Seamless

• Rated Pressure
• Sch 10 to Sch 80

• Sealing Type
• Metal-to-metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -60C to 450C

• Tensile Strength
• 515 MPa (minimum, for SS304)

• Thickness
• 2~10 mm (customizable)

• Tolerance
• 0.2 mm

• Usage
• Pipe Fitting, Plumbing, Industrial applications

• Yield Strength
• 205 MPa (minimum, for SS304)

• Application
• other, Industrial, Commercial, Plumbing, Oil & Gas

• Coating Type
• Optional (Nickel, Chrome as per spec)

• Color
• Silver / Black / Brass Tone

• Connection
• Other, Threaded / Socket Weld

• Connection Type
• Female Threaded / Coupler

• Diameter
• As per nominal bore

• Flexibility
• Rigid

• Length
• Custom or standard sizes (25 mm to 100 mm)

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316 / 316L / 304L

• Outer Diameter
• As per nominal pipe size (usually 1/8 to 4)

• Product Type
• Other, Pipe Coupling

• Rated Pressure
• Up to 6000 PSI (varies by size and grade)

• Sealing Type
• Metal-to-metal / Thread Seal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Polished / Galvanized / Natural Finish

• Temperature Range
• -20C to +200C

• Tensile Strength
• 500-750 MPa (depends on grade)

• Thickness
• As per requirement (commonly 2-8 mm)

• Thread Type
• BSP / NPT

• Tolerance
• 0.05 mm

• Usage
• Pipe fitting, Plumbing, Water supply

• Yield Strength
• 250-450 MPa (depends on grade)

• Application
• other, Industrial, Plumbing, Chemical, Oil & Gas

• Bend Radius
• Equal to pipe diameter (Short Radius) or 1.5x pipe diameter (Long Radius)

• Coating Type
• Optional Epoxy / None

• Color
• Metallic Grey / Silver

• Connection
• Other, Socket Weld / Butt Weld / Threaded

• Connection Type
• Welded / Threaded / Socket Weld

• Diameter
• Suitable for pipes 0.5 inch to 24 inch OD

• Flexibility
• Rigid

• Length
• Standard Elbow Length per ASME/ANSI

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS304L / SS316L

• Outer Diameter
• 1/2 inch to 24 inch (customizable)

• Product Type
• Other, Elbow Fitting

• Rated Pressure
• Up to 3000 PSI (varies with size and thickness)

• Sealing Type
• Metal-to-metal, Compatible with PTFE tape

• Section Shape
• Round

• Shape
• Other, Elbow (90 Degree)

• Standard
• Other, ASTM A403 / ASME B16.9 / B16.11

• Surface Treatment
• Other, Sand Blasted / Pickled / Polished

• Temperature Range
• -196C to 600C

• Tensile Strength
• 515 MPa min (for SS304)

• Thickness
• Sch 10 to Sch 160 (varies by size)

• Thread Type
• BSP / NPT (for threaded variants)

• Tolerance
• 0.1 mm

• Usage
• Pipe Fittings / Industrial Piping

• Yield Strength
• 205 MPa min (for SS304)

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water Treatment

• Coating Type
• Anti-corrosive Coating

• Color
• Silver

• Connection
• Other, Welded / Bolted

• Connection Type
• Threaded / Flanged / Socket Weld

• Diameter
• 15 mm to 600 mm

• Flexibility
• Rigid

• Length
• Depends on design

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L

• Outer Diameter
• Up to 600 mm

• Product Type
• Other, Pipe Flange

• Rated Pressure
• PN6, PN10, PN16, PN25, PN40

• Sealing Type
• Gasket Seal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ANSI, DIN, JIS, BS, EN, GOST

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +600C

• Tensile Strength
• 520 MPa

• Thickness
• 10 mm to 40 mm

• Thread Type
• BSP/ NPT

• Tolerance
• 0.03 mm

• Usage
• Piping Systems, Industrial Fittings

• Yield Strength
• 210 MPa

• Application
• other, Pipe Fittings, Hydraulic Lines, Fluid Transmission

• Bend Radius
• Not applicable for coupling

• Coating Type
• Available on request (Zinc-plated, Galvanized)

• Color
• Metallic Silver / Grey

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• Customizable as per requirement

• Flexibility
• Rigid

• Length
• As per standard (typically 20-75 mm)

• Material
• Other , Stainless Steel / Carbon Steel / Alloy Steel

• Material Grade
• A105 / SS304 / SS316 / F11 / F22 (as specified)

• Outer Diameter
• Range: 15 mm - 114 mm (as per size specification)

• Product Type
• Other, Socket Weld Coupling Half

• Rated Pressure
• Class 3000 / 6000 / 9000 lbs

• Sealing Type
• Welded

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASME B16.11 / ASTM A105 / MSS-SP-83

• Surface Treatment
• Other, Polished / Shot Blasted / Natural Finish

• Temperature Range
• -20C to 600C (depending on material)

• Tensile Strength
• 485 MPa (for Steel grades)

• Thickness
• Varies by size (typically 5-15 mm)

• Thread Type
• N/A (Socket Weld Type)

• Tolerance
• 0.05 mm

• Usage
• Industrial piping, Oil & Gas, Chemical Processing

• Yield Strength
• 250 MPa (for Steel grades)

• Application
• other, Petrochemical, Oil & Gas, Chemical, Food Processing, Pharmaceutical, Water Treatment

• Coating Type
• No external coating

• Color
• Silver / Metallic

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Varies as per order

• Flexibility
• Rigid

• Length
• As required

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L / SS304L

• Outer Diameter
• Up to 600 mm (As per requirement)

• Product Type
• Other, Reducer Fitting

• Rated Pressure
• ANSI Class 150/300/600/900

• Sealing Type
• Metal-to-metal seal

• Section Shape
• Round

• Shape
• Other, Concentric or Eccentric

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 800C

• Tensile Strength
• 515 MPa (minimum for SS304)

• Thickness
• Schedule 10/20/40/80 (varies as per requirement)

• Thread Type
• Not applicable (welded)

• Tolerance
• 0.1 mm

• Usage
• Pipe fitting/Fluid transmission

• Yield Strength
• 205 MPa (minimum for SS304)

• Application
• other, Chemical, Petrochemical, Food, Pharmaceutical, Water Supply

• Bend Radius
• As per Standard

• Coating Type
• Uncoated / Polished

• Color
• Silver / Metallic

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Custom/Standard Sizes

• Flexibility
• Rigid

• Length
• As Per Requirement

• Material
• Stainless Steel

• Material Grade
• SS 304

• Outer Diameter
• 1/2inch to 24inch

• Product Type
• Other, Eccentric Reducer

• Rated Pressure
• Sch 10 / Sch 20 / Sch 40 / Sch 80 (Depending on pipe)

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Eccentric

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Pickled, Polished

• Temperature Range
• -196C to 600C

• Tensile Strength
• 515 MPa min

• Thickness
• 2 mm - 10 mm (customizable)

• Tolerance
• 0.5 mm

• Usage
• Pipe Fittings / Fluid Handling

• Yield Strength
• 205 MPa min
